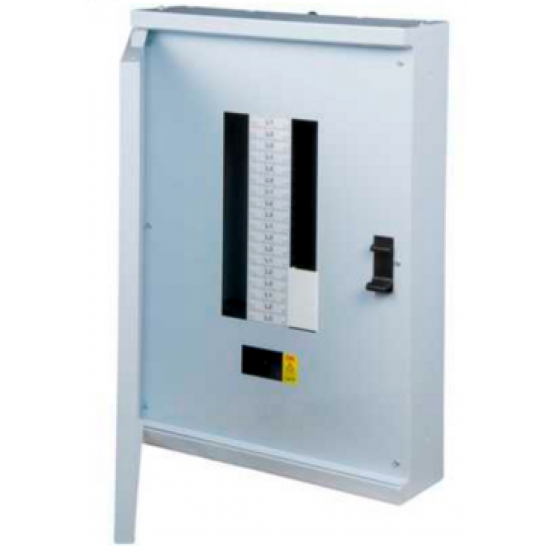

LoadCentre KQ 12 TPN Way Distribution Board

Features

• Number of triple pole ways - 12
• Dimensions;
• Height - 700
• Width - 470
• Depth - 139
• Manufactured and tested to BS EN 61439-3
• Maximum busbar rating 250A
• Voltage Rating 400/415V AC
• External IP3X protection to BS EN 60529
• IP2XB finger safe with door and cover removed to BS EN 60529, provided by permanent, non removable, factory fitted barriers
• Fully shielded neutral bars
• Earth and neutral bar cable capacity 25mm²
• All incoming connections are the same length i.e. 4 pole configuration
• Range of internal incomers for all applications including lugs, switches, RCCB's and MCCB's
• Outgoing MCB's available up to 63A B,C or D curves
• 18mm wide RCBO available, minimising use of outgoing ways
• Plug-on outgoers for speed of installation and guaranteed connection
• All B boards accept DIN control products (timer, contactors) in any unused outgoing way without adaptation
• Control wiring cable way integrated to molding
