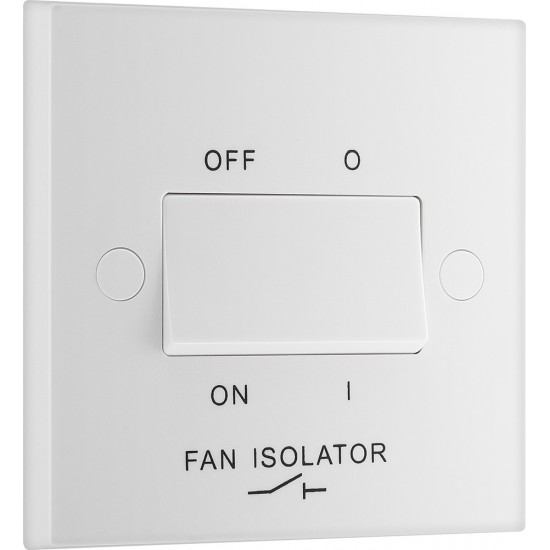

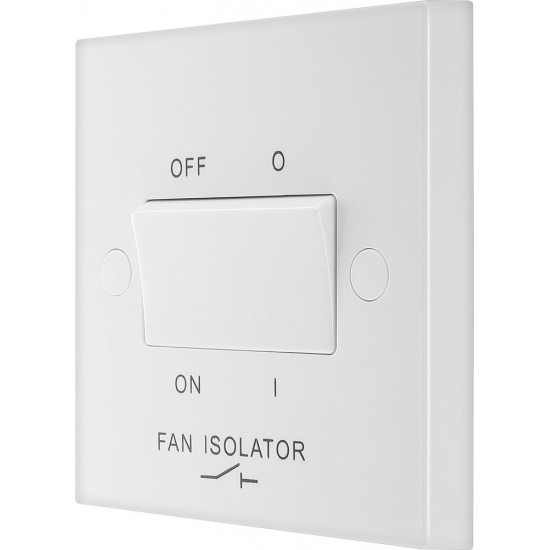

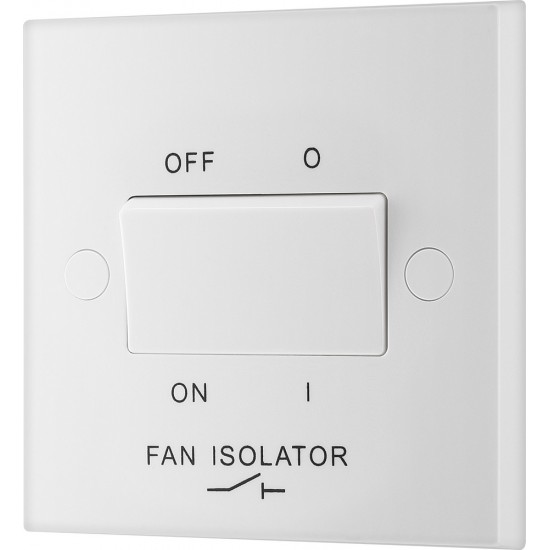

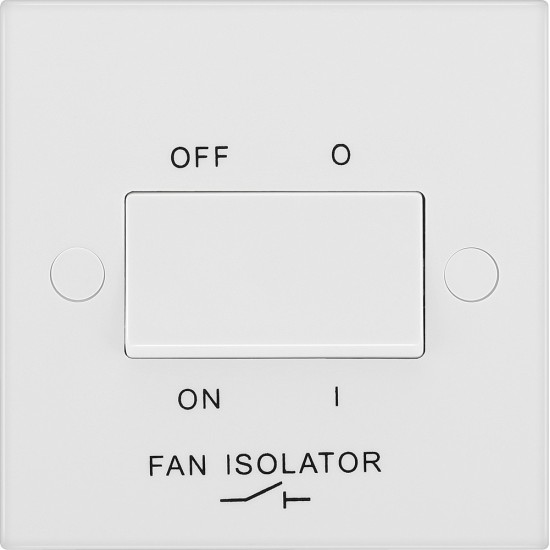

BG TP Fan Isolator Switch (915)

This 900 series white moulded 10A triple pole fan isolator from British General provides a safe and simple method of isolating mechanical fan units. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of of infectious diseases. Finished with classic square edges and screw caps for a sleek appearance.

The BG 900 series white moulded ranges of wiring accessories promote a healthy environment by facilitating up to 99% reduction in bacterial development on touch point surfaces. Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria.

Features

• All switches 10 Amp, 10AX inductive rated
• Captive terminal screws

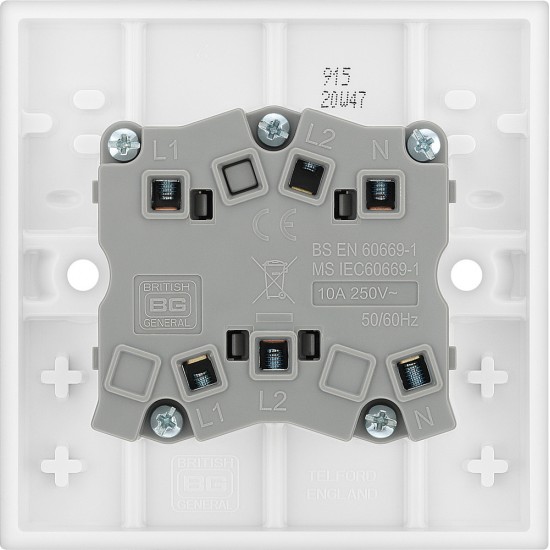

• Terminal capacity 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
• Plate-switches manufactured to BS EN 60669-1, fan isolator IEC 60669-2-4

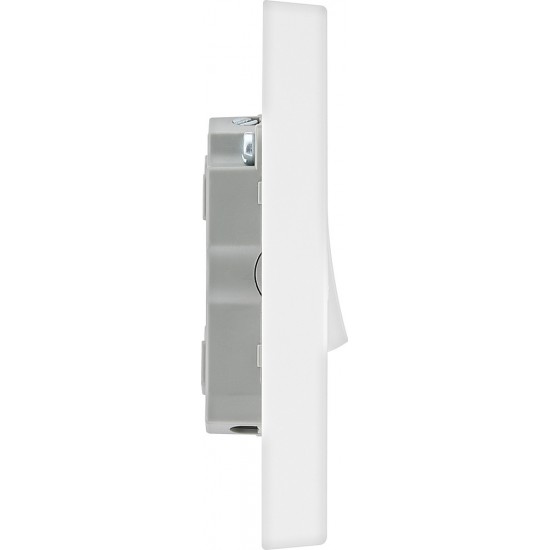

• Minimum mounting box depth: 1 & 2 gang 16mm – 3, 4 & 6 gang 25mm
