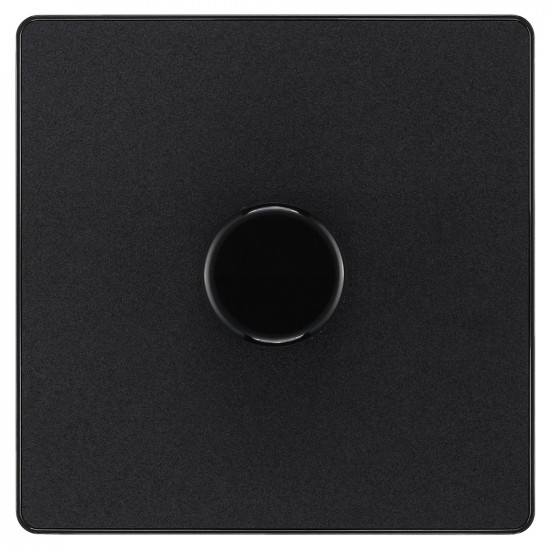

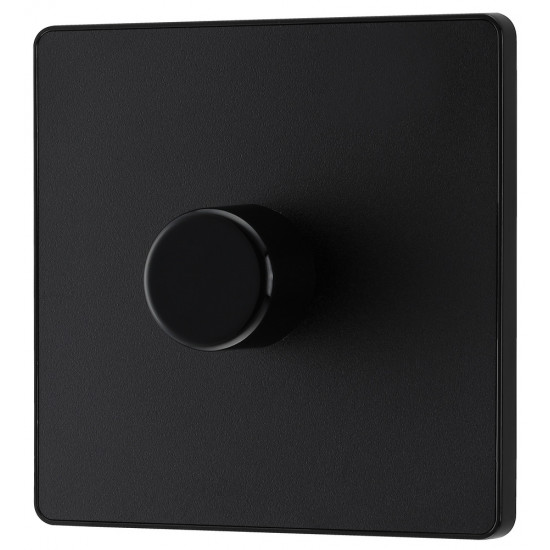

BG Evolve 1G Dimmer Switch P/P Matt Black

These modern and stylish switches and sockets are the latest addition to the BG Decorative Wiring Accessory portfolio. Designed with a slim, screwless profile, this comprehensive range offers a complete solution for any domestic or commercial application.

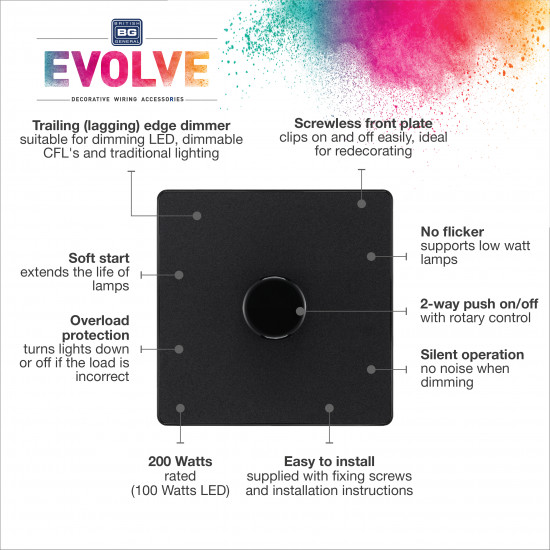

Features

• Intelligent trailing edge dimmer suitable for LED, halogen, CFL and incandescent lamps
• Soft start, smooth dimming control and silent operation
• 2 Way push on/off with rotary control
• Overload protection will turn the lights down or off until the load is corrected

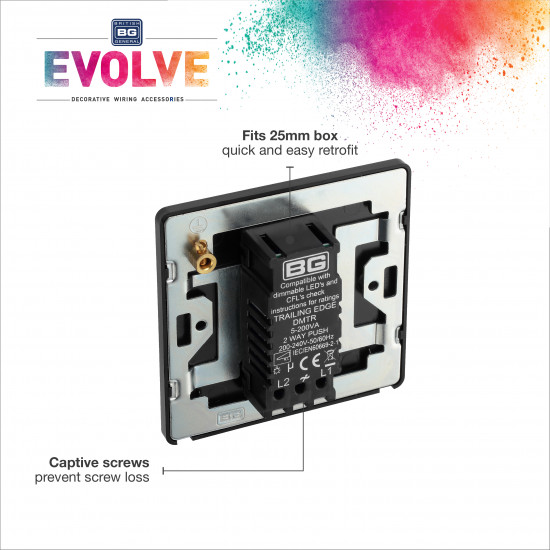

• Clearly marked terminals with backed out captive screws for easy installation

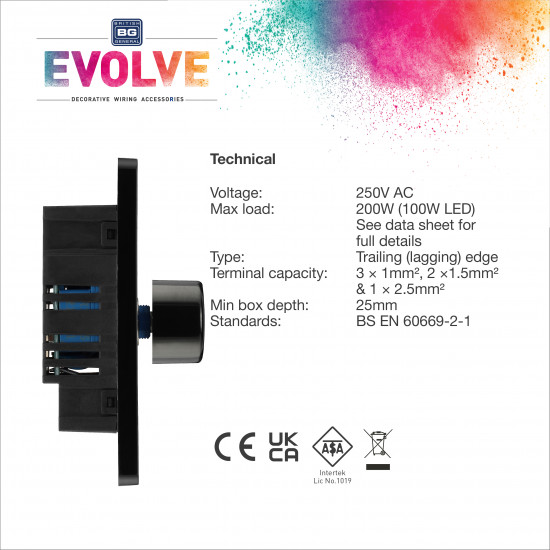

• Terminal capacity 3 x 1mm², 2 x 1.5mm² & 1 x 2.5mm²
• Manufactured to BS EN 60669-2-1
• Minimum mounting box depth – 25mm

Load Rating (Max/Min per module)

•  Dimmable LED 5-100W
• Tungsten/Incandescent 5-200W
• Halogen 20-200W
• Dimmable Compact Fluorescent (CFL) 5-100W
