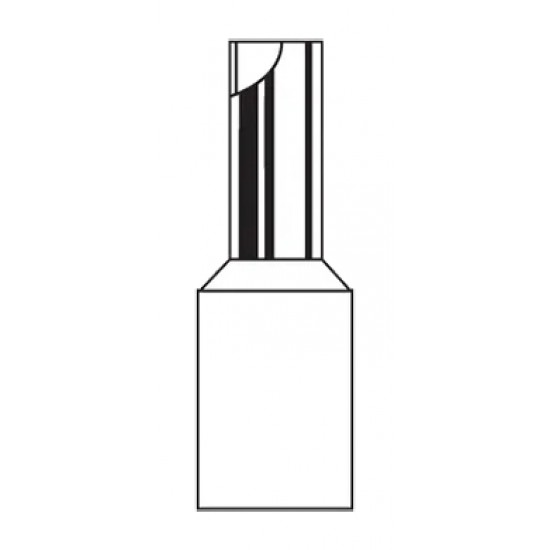

0.75mm Bootlace Ferrules (Per100)

Insulated bootlaces manufactured from tin plated electrolytic copper designed to reinforce fine wire strands when terminating cables into connectors.

Also suitable for tri rated cables in accordance with DIN46288 Part 4 .

Specification:

• Cable Size: 0.75mm²
• Insulation Colour: White
• Temperature Rating: -40°C to +105°C
• Designed for use with flexible cables
• Overall Length (L1): 14.6mm
• Pin Length (L2): 8.2mm
• Pin Diameter (D1): 1.2mm
• Pin Thickness (S1): 0.15mm
• Insulation Diameter (D3): 2.8mm
