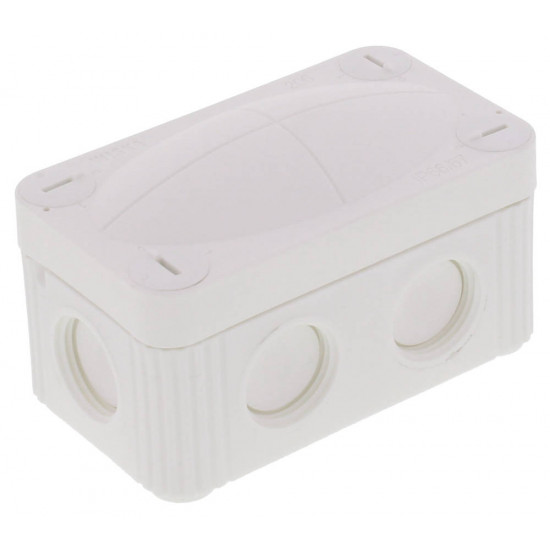

Wiska (206W) Combi Box 85x49x51 White

Wiska Combi Box 206W 85x49x51 White

WISKA COMBI junction boxes are easily identified by their well-known bellied cover allowing for more room inside the box and easy installation.

COMBI also offers you the following advantages:

• Weather-proof, resistant to ultraviolet, shatter proof, impact-resistant
• Ideally suitable for extreme conditions or outdoor installations
• Solid thermoplastic housing made out of 2 different kinds of moulding components
• Flame-retardant and halogen-free
• Saving on labour thanks to faster cable entry via soft self-sealing membrane, no further tool required
• Captive and rust-free quick-release lid screws of plastic, closing of the box with only a quarter turn
• 10 % more room inside thanks to bellied cover
• Integrated thread in which cable glands can be directly mounted into - without locknuts. The combination of thread and membrane saves you one further working process.

Features

• 4 internal Fixing openings
• Internal capacity 240ml
• Cable diameter min 3 mm
• Cable diameter max 12 mm
• Type of cable gland: M 20 x 1,5
• External dimensions
• Length: 85mm
• Width: 49mm
• Height: 51mm
