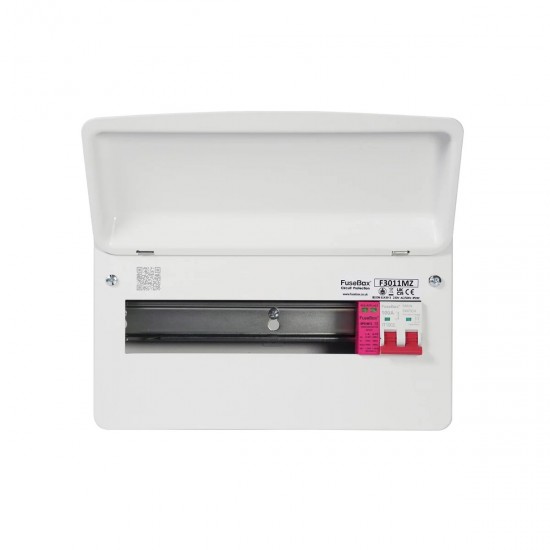

Fusebox 11 Way Consumer Unit 100A Main Switch & SPD

FuseBox F3 Series F30011MZ Consumer Unit with Integrated Type 2 Surge Protection

Safeguard your home with the FuseBox F3 Series F30011MZ consumer unit, a cutting-edge solution designed for modern electrical installations. This compact and robust 11-way board features an innovative, direct-to-busbar Type 2 Surge Protection Device (SPD), ensuring superior protection against transient overvoltages without sacrificing valuable usable ways.

Key Features:

• Integrated Type 2 Surge Protection (SPD): The F30011MZ comes with a single-module Type 2 SPD that connects directly to the busbar. This clever design eliminates the need for a separate MCB, freeing up an additional usable way within the unit and simplifying installation.
• 11 Usable Ways: Provides ample capacity for your electrical circuits, making it suitable for a variety of domestic applications.
• 100A Main Switch Incomer: A robust 100A double pole main switch ensures reliable power isolation for your property.
• Installer-Friendly Design:
  • Generous Internal Space: Ample room for easy wiring and installation of both mini and standard height RCBOs.
  • Captive Front Cover Screws: No more lost screws during installation or maintenance.
  • Removable and Raised DIN Rail: Facilitates quick and easy mounting of circuit protection devices.
  • Reinforced Grommet Strip: Provides enhanced cable protection at entry points.
  • Round Knockouts: Strategically placed on all four sides, with additional large rectangular knockouts on the rear for versatile cable entry.
  • 32mm Tails Clamp: Included for secure cable termination.
• Robust Construction: Manufactured from 1mm electro-galvanised steel (zinc) with a high-quality RAL 9001 powder-coated arctic white finish for durability and a stylish appearance.
• Comprehensive Installation Pack: Includes a busbar, an icon label pack for clear circuit identification, and a grommet strip, ensuring you have everything you need for a professional install.
• Full Compliance: Meets the latest standards including BS EN61439-3 and is compliant with the 18th Edition Wiring Regulations and Amendment 3.

Dimensions: 259mm (H) x 338mm (W) x 113mm (D)
