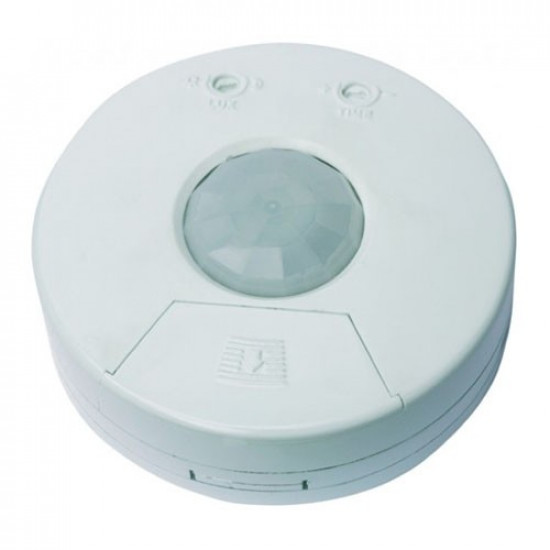

HS Surface Mounted Occupancy Detector (HSODS)

HS Surface Mounted Occupancy Detector (HSODS)
HS Surface Mounted Occupancy Detector (HSODS)
£17.40
Ex Tax: £14.50
  • Stock: In Stock
  • Model: 88134
  • SKU: 88134
  • MPN: HSODS
Any order’s over £75+vat no carriage

Any orders below £75 subject to £7.50 carriage


The surface model is supplied with a first fix back plate. The detector is offered to the plate and with a quarter turn of the detector, is firmly in place. For larger situations the multiple detectors can be wired in parallel. Always remember to locate any PIR away from secondary heat sources such as radiators, as this could instigate an un-required activation of the load.

Features:

  • Energy Saving
  • Easy To Install
  • Adjustments To Timer & Lux Level can be made without de-installing
  • BESA Box fitting

Technical:

  • Maximum Fluorescent Load 1,000w
  • Maximum Incandescent Load 2,000w
  • AC Operated
  • Adjustable LUX control
  • Adjustable Time Delay
  • Identifies Day and Night Automatically
  • Detection distance: 6m max (<22°C)
  • Detection range: 120°(side view) 360°(front view)
  • Light-control: 3LUX~1000LUX(adjustable)
  • Time-delay: 8sec~6 mins(adjustable)
  • Rated load: Maximum 2000W incandescent lamp (resistive load/230V/AC)
  • Maximum 1000W fluorescent lamp (inductive load/230V/AC)
  • Installation height: 3m max
  • Power consumption: 0.5W (static 0.2W)
  • Detection motion speed: 0.6~1.5m/s
  • Working humidity: <93c/oRH
  • Working temperature: -20~40°C
  • Diameter: 90mm - Depth: 30mm
  • IP44
