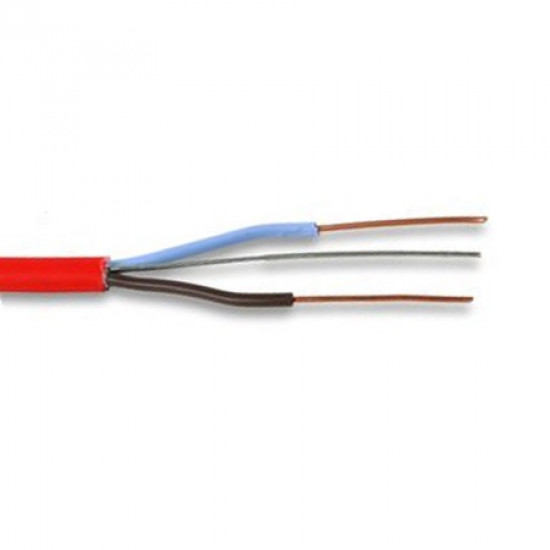

1.5mm 2C & Earth Fire Alarm Cable Enhanced 100M (Red)

1.5mm 2 Core Fire Alarm Cable 100m Enhanced

An ‘Enhanced’ Fire Cable is tested to provide a guaranteed 2 hour duration with the cable under Fire and Mechanical Shock conditions with Water applied for the final hour at a temperature of 930 degrees C. The outer sheath and foil are adhered so together are removed at the same time, no time consuming multiple sheaths, foils, wraps or mica tapes to remove.

Features

• Fastest Enhanced Fire Cable to Prepare for Termination
• Easy to Install and Superb Working Flexibility
• Up to 12 Twists per metre for Data Protection
• Full Size CPC (Earth Core)
• Red Outer Sheath
• 1.5mm² 2 core Conductors
• 100m Lengths
• Copper / Co-polymer Foil Screen
• Low Smoke & Zero Halogen
• Voltage Rating 300v/500v
• Suitable for Zone 1 and Zone 2 Hazardous Area Use
• Suitable for Air Conditioning, Computer Control & Lift Doors where Low Smoke & Zero Halogen is required

Approved and Certified to meet

• BS 5839-1:2013 Clause 26.2d'Standard' Fire Cable
• BS EN 50200:2006 + Annex E 30 Minutes Fire Resistance Standard
• BS EN 50200:2006 PH30, PH60 & PH120 Fire Resistance Standard
• BS 7629-1:2008 Fire Resistance Standard
• BS 6387:1994 Clause 11 CWZ Fire Resistance Standard
• BS EN 50267-2-1:1999 Halogen Emission Standard
• BS EN 61034-2:2005 Low Smoke Standard
• Emergency Lighting Standard BS 5266-1:2011
• Voice Alarm Systems Standard BS 5839-8:2013
• Voice Communication Standard BS 5839-9:2013
