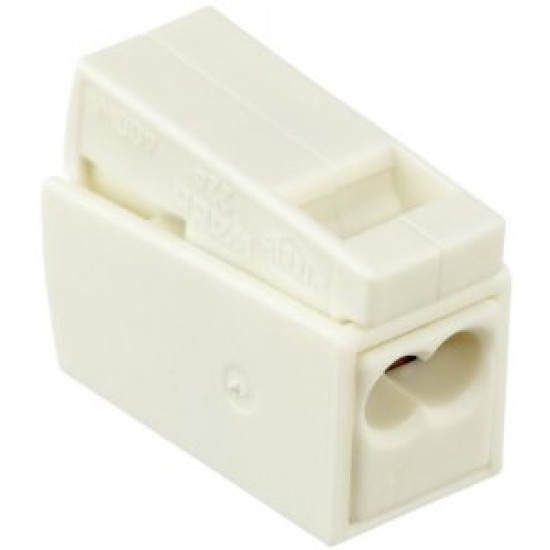

Wago Lighting Connector 2.5mm 3 Way Each

Wago Lighting Connector 2.5mm 3 Way (224-112)

Lighting connectors suitable for a variety of applications. Installation/field side for solid conductor, Lighting side for stranded or solid conductor

Features

• Supply Side: Solid conductor size 1 mm² to 2.5 mm²
• Load Side: Solid, Stranded or Flexible 0.5 mm² to 2.5 mm²
• Number of connection points: 3
• No. of potentials: 1
• Maximum Voltage: EN 400 V
• Maximum Isolation: 4 kV
• Current intensity: EN 24 A
• Colour: white
• Wiring type: Side-entry
• Dimentions;
• Height: 15.5 mm
• Width: 9.5 mm
• Depth: 20.5 mm
